How to Choose a Square Bottom Paper Bag Machine for Medium and Large Bags

The global pivot from plastic to paper is no longer a trend; it is a fundamental market shift. In retail, grocery, and food service sectors, medium and large square bottom paper bags have become the standard for their durability, branding potential, and eco-friendly appeal. However, producing these larger format bags introduces significant complexity. Manufacturers must balance the need for high-speed output with the structural integrity required to carry heavy loads, a challenge that standard machinery often fails to meet. This guide provides a detailed technical and commercial framework for selecting the right square bottom paper bag machine. We will help you navigate critical specifications, evaluate automation levels, and calculate long-term return on investment, ensuring your capital expenditure is a strategic asset for years to come.

Key Takeaways

• Prioritize Servo-Drive Systems: Essential for reducing changeover times and maintaining precision in large-format bags.

• Material Compatibility: Ensure the machine handles 70–170 GSM paper to support the weight requirements of larger bags.

• Waste Benchmarks: High-performing machines should maintain a waste rate of <0.5% during continuous operation.

• Integrated Handle Units: For medium/large retail bags, in-line handle application significantly reduces secondary labor costs.

• FAT is Non-Negotiable: Never finalize a purchase without a rigorous Factory Acceptance Test (FAT) protocol.

Defining Your Production Requirements: Medium vs. Large Formats

Before evaluating any machinery, you must first establish a clear and detailed specification sheet for your end product. This initial step dictates every subsequent decision, from material choice to the level of automation required. Without precise parameters, you risk investing in a machine that is either underpowered for your needs or over-engineered for your market.

Load-Bearing Specifications

The primary function of a medium or large paper bag is to carry weight. This capacity is determined by the interplay between the bag's dimensions and the paper's weight, measured in grams per square meter (GSM). For heavy-duty applications like grocery shopping or carrying multiple retail items, a higher GSM is essential.

• Medium Bags (e.g., boutique retail, takeaway food): Typically require paper in the 70–110 GSM range. They need to be robust but not overly rigid.

• Large Bags (e.g., supermarket groceries, bulk goods): Demand heavier paper, often from 100–170 GSM, to prevent tearing and support weights of 5kg to 10kg or more.

When selecting a machine, verify its specified GSM range. A machine optimized for lightweight paper may struggle with the tension and creasing force required for heavier stock, leading to jams and poor-quality folds.

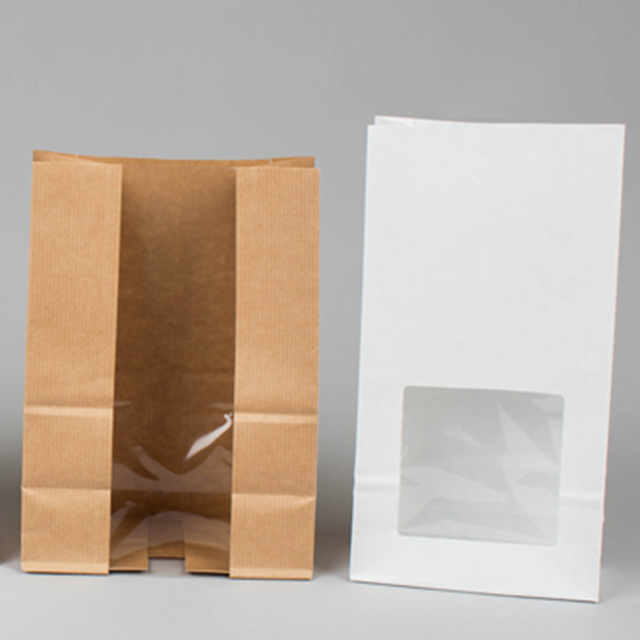

Square Bottom vs. V-Bottom

While V-bottom (or sharp bottom) bags are suitable for small, lightweight items like pastries or pharmaceuticals, the square bottom design is the undisputed industry standard for any application requiring stability. Its flat, rectangular base allows the bag to stand upright on its own, making it easy for cashiers to pack and convenient for customers to unload. This \"stand-up\" stability is non-negotiable for retail, grocery, and modern food delivery services.

Volume Projections

Your required output directly influences the necessary level of automation. Calculating your target volume is critical for right-sizing your investment. Production needs can be categorized as follows:

• Low to Medium Volume: Semi-automatic machines may suffice, but they require significant manual intervention, especially for handle application.

• High Volume (200–400 pcs/min): Fully automatic, roll-fed machines are essential. These systems integrate all processes—from printing and tube forming to bottom gluing and handle attachment—into a single, continuous workflow.

A fully automated square bottom paper bag machine minimizes labor costs and ensures consistent quality at high speeds, which is crucial for meeting the demands of large retail chains or distributors.

End-Use Applications

Finally, consider the specific market you serve. The requirements for a luxury retail bag are vastly different from those for a bulk grocery bag.

• Luxury Retail: Demands high-quality printing, precise color registration, and often features premium handles (e.g., twisted paper cord). The machine must have advanced print control and versatile handle options.

• Food Delivery & Takeaway: Requires grease-resistant paper and strong, reliable seals to prevent leaks. The gluing system's quality is paramount.

• Bulk Grocery: Prioritizes strength, speed, and cost-efficiency. Features like reinforced bottom patches and sturdy, flat handles are key considerations.

Technical Evaluation: Servo-Driven vs. Mechanical Transmission

The engine of a modern paper bag machine is its drive system. The choice between a traditional mechanical transmission and a contemporary servo-driven system has profound implications for precision, efficiency, and operational flexibility, especially when producing larger bags.

Precision in Large Formats

Traditional mechanical machines rely on a system of gears, cams, and shafts to synchronize operations. While reliable for smaller, simpler bags, this design struggles with the demands of large formats. The significant weight and tension of wide paper rolls (often exceeding 1300mm) can introduce minute timing errors and vibrations in a mechanical system. This leads to inconsistent bag lengths, poor print registration, and higher waste rates. The physical inertia makes it difficult to maintain perfect tension control, a critical factor for strong, well-formed bags.

The Servo Advantage

Servo-driven systems replace mechanical linkages with independent, digitally controlled motors for each key function (e.g., paper feeding, cutting, folding). This digital control offers transformative benefits:

• Instant Adjustments: Operators can change bag length and other parameters via a touchscreen interface, with the motors adjusting instantly and precisely.

• Reduced Vibration: The absence of complex gear trains results in smoother operation, improving the quality of creases and folds.

• Lower Maintenance: Fewer mechanical parts mean less wear and tear, reducing maintenance overhead and the risk of unexpected breakdowns.

• Enhanced Consistency: Digital synchronization ensures every bag is produced to the exact same specifications, minimizing material waste.

Changeover Efficiency

One of the most significant operational drains in bag production is the time required to switch between different bag sizes. With a mechanical machine, this process involves manually adjusting or replacing gears and forming plates, a task that can take an experienced technician up to four hours. Modern servo-driven paper bag making machine models have revolutionized this process. By storing size parameters as digital recipes, a changeover can be completed in under 45 minutes, dramatically increasing machine uptime and allowing for more agile production planning.

Digital Integration

The benefits of digital control extend beyond the motors themselves. Modern machines are integrated with Programmable Logic Controller (PLC) touchscreens, which serve as the central hub for operation and monitoring. These interfaces provide real-time data on production speed, material consumption, and error diagnostics. Advanced systems also offer remote diagnostic capabilities, allowing a manufacturer's technician to access the machine's software remotely to troubleshoot issues, minimizing costly downtime.

Critical Components: Gluing, Folding, and Handle Integration

Beyond the drive system, several key components determine the machine's reliability and the final product's quality. Failures in these areas can lead to significant downtime and product defects, undermining the efficiency of an otherwise advanced machine.

Adhesive Systems

Industry data suggests that unreliable gluing systems are responsible for up to 40% of machine downtime. A consistent, precise application of adhesive is crucial for both side seam integrity and bottom sealing. You must evaluate both the type of adhesive and the quality of the application system.

• Cold Glue (Water-Based): More economical and easier to clean, but it has a longer setting time. It is suitable for side seams on many paper types but may not be ideal for high-speed bottom sealing on heavy GSM paper.

• Hot Melt Glue: Provides a much faster bond and superior adhesion, which is critical for the structural integrity of heavy-duty bags. While more expensive and requiring more maintenance, a high-quality hot melt system is often a necessary investment for large-format production.

Look for machines with reputable, non-contact gluing systems that ensure precise adhesive patterns without smearing, even at high speeds.

Handle Configurations

For retail and grocery bags, the handle is a critical functional and aesthetic component. Your machine should be able to produce the handle types your market demands:

• Twisted Handles: Offer a premium look and feel, popular for fashion retail and boutique brands.

• Flat Handles: Provide excellent strength and a large surface area for branding, making them ideal for grocery and takeaway bags.

• -

D-Cut (Die-Cut) Handles:

• An integrated handle cut directly from the bag's top edge, offering a sleek, cost-effective solution for lighter loads.

In-line vs. Standalone Handle Units

Handles can be applied in a separate, offline process or integrated directly into the bag making line. For medium to large-scale operations, an in-line unit is almost always the superior choice. Here’s a comparison:

Bottom Folding Accuracy

The square bottom is formed through a series of complex, high-speed folding and gluing operations. For bags designed to carry loads of 5kg–10kg, the precision of this process is paramount. Any inaccuracy in the folding or gap in the glue application can create a critical weak point. High-quality machines use robust mechanical formers and sensors to ensure that each bottom is perfectly square and securely sealed, batch after batch.

The Business Case: ROI, TCO, and Operational Costs

Investing in a square bottom paper bag machine is a significant capital expenditure, with prices ranging from $80,000 for basic models to over $250,000 for high-speed, fully-featured systems. To justify this cost, you must look beyond the initial price tag and analyze the Total Cost of Ownership (TCO) and Return on Investment (ROI).

Initial Investment vs. Lifecycle Value

What drives the wide variance in cost? Key factors include:

1. Drive System: Servo-driven machines command a premium over mechanical ones but deliver superior performance and lower long-term operating costs.

2. Speed & Size Range: Higher speeds and the ability to produce a wider range of bag sizes increase machine complexity and cost.

3. Automation Level: Integrated features like in-line printing, handle application, and automatic counting/stacking units add to the initial cost but drastically reduce labor needs.

4. Build Quality & Components: The use of high-grade steel, reputable electronics (e.g., Siemens, Mitsubishi), and brand-name components for critical systems like gluing adds to the cost but ensures reliability and longevity.

A cheaper machine that suffers from frequent downtime or high waste rates offers poor lifecycle value.

Labor Cost Reduction

Automation is the single most powerful driver of ROI. A fully automatic production line can reduce the required headcount by up to 60% compared to a semi-automatic setup. For example, a line that previously required five operators (one for the bag former, three for manual handle application, one for packing) can be run by just two operators (one to oversee the machine and manage roll changes, one for packing finished stacks).

Waste and Material Savings

Material is a primary cost driver in bag manufacturing. A machine's waste rate has a direct and significant impact on profitability. High-performing machines operate with a waste rate of less than 0.5%, while poorly tuned or older machines can easily exceed 2%.

Example Calculation:
Imagine a machine running 10,000 kg of paper per month.

• At a 2% waste rate, you lose 200 kg of paper.

• At a 0.5% waste rate, you lose only 50 kg of paper.

This 150 kg monthly saving translates to 1,800 kg of paper saved annually, representing thousands of dollars added directly to your bottom line.

Energy Consumption

High-speed machines are energy-intensive, and their KVA (kilovolt-ampere) rating should be considered in your operational cost calculations. Modern servo-driven systems are often more energy-efficient than older mechanical machines that rely on large motors and clutch-brake systems. They consume power in proportion to the work being done, whereas mechanical systems often run a large primary motor continuously. Ask for detailed energy consumption data from the manufacturer.

Implementation Strategy and Risk Mitigation

Purchasing the machine is only the beginning. A successful implementation requires careful planning for logistics, training, and support to mitigate risks and ensure a smooth startup.

Factory Acceptance Test (FAT) Protocols

A Factory Acceptance Test is a non-negotiable step in the procurement process. This is your opportunity to verify the machine meets all promised specifications before it leaves the manufacturer's facility. A robust FAT protocol should include:

• An 8-Hour Continuous Run: To test for overheating, component failure, and performance stability over a full shift.

• Production Speed Verification: Confirming the machine can consistently run at the quoted speeds for your specific bag sizes.

• Waste Rate Measurement: Quantifying the amount of waste generated during the continuous run to ensure it meets the <0.5% benchmark.

• Size Changeover Test: Timing the process to confirm it can be done within the promised window (e.g., under 45 minutes).

• Drop and Load-Bearing Tests: Performing physical tests on the finished bags to ensure they meet your structural integrity requirements.

Floor Space and Infrastructure

Properly planning your facility layout is crucial. A roll-fed square bottom machine with an in-line handle unit has a significant footprint. You must account for:

• The machine's physical dimensions (often 15-20 meters long).

• Clearance for maintenance access on all sides.

• Space for raw material logistics, including storage for large paper rolls.

• An area for staging and packing finished goods.

• Stable power supply and, if necessary, compressed air.

• Climate control for the paper storage area, as humidity can negatively affect paper quality and runnability.

Operator Training and Skill Gaps

Modern servo-controlled systems require a different skill set than traditional mechanical machines. Operators need to be comfortable using PLC touchscreens and understanding digital controls rather than performing purely mechanical adjustments. Assess your team's current skills and plan for comprehensive training provided by the manufacturer. While the learning curve may seem steep, a well-designed user interface can make operation more intuitive and less prone to error in the long run.

After-Sales Support

Your relationship with the vendor doesn't end upon delivery. Evaluate their after-sales support structure carefully. Key questions to ask include:

• What are your standard response times for service requests?

• Do you have local technicians available?

• What is the availability and lead time for critical spare parts?

• Do you offer remote troubleshooting and diagnostics to resolve issues faster?

A strong support partner is invaluable for maximizing machine uptime and resolving issues quickly.

Conclusion

Choosing the right square bottom paper bag machine is a complex decision with long-term consequences. The golden rule is to precisely match the machine's speed, automation level, and technical capabilities to your specific product mix and projected volumes. Avoid the temptation of a low initial price at the expense of performance, reliability, and lifecycle value. Our final recommendation is to invest in scalability and digital precision. A servo-driven, highly automated machine will not only meet your current needs but also future-proof your operations against rising labor costs and evolving market demands. To ensure you make the best choice, consult with technical experts who can perform a custom configuration audit based on your unique business goals.

FAQ

Q: What is the ideal GSM range for a large square bottom paper bag machine?

A: Typically, machines designed for medium and large bags should handle a paper weight range of 70–170 GSM. The lower end (70-110 GSM) is suitable for standard retail and takeaway bags, while the higher end (110-170 GSM) is necessary for heavy-duty grocery bags or bulk item packaging that requires superior strength and durability.

Q: How long does it take to see an ROI on a fully automatic machine?

A: For high-volume operations, the return on investment for a fully automatic machine is typically seen within 3 to 5 years. This is driven by significant savings in labor costs, drastically reduced material waste, and higher overall production output compared to semi-automatic or manual processes. The exact timeframe depends on local labor costs, material prices, and production volume.

Q: Can one machine produce both small and large bags?

A: While most machines have a specific size range they can produce, this range can be quite broad. However, a single machine usually cannot efficiently produce both very small and very large bags. The machine's design—specifically its forming drum, cylinders, and cutting mechanisms—is optimized for a particular segment. Trying to operate far outside this optimal range can lead to reduced speed and quality.

Q: What is the standard waste rate for a high-quality paper bag making machine?

A: Industry leaders and top-tier machine manufacturers aim for a waste rate of less than 0.5% during continuous, stable operation. This benchmark is achieved through precise servo controls, reliable tension systems, and high-quality components that minimize errors in feeding, cutting, and gluing. A rate higher than 1% may indicate issues with machine tuning or component quality.

Q: How much floor space is required for a roll-fed square bottom machine with an in-line handle unit?

A: A complete, fully automatic line can be quite large. A typical footprint is around 15 to 20 meters in length and 4 to 5 meters in width. This includes the machine itself, the handle unit, and the collection table. You must also plan for additional clearance (at least 1 meter on all sides) for operator access, maintenance, and safe workflow for raw materials and finished products.
