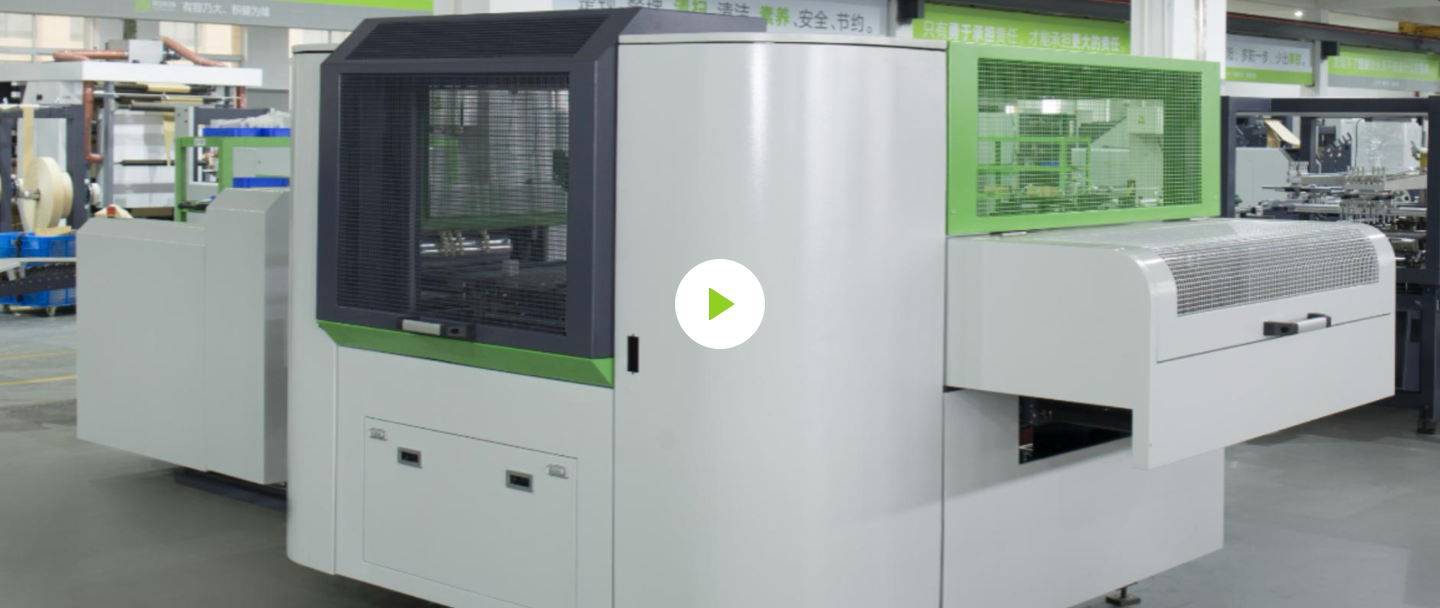

R22 Case Making Machine

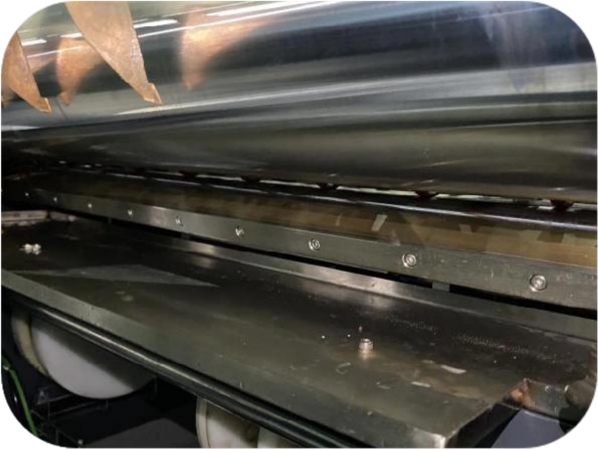

Heatable Separation Blade

when machine is running, blade is lifting up to assist gluing thinner and more evenly. When the machine stopped, it will put down to avoid sticking.

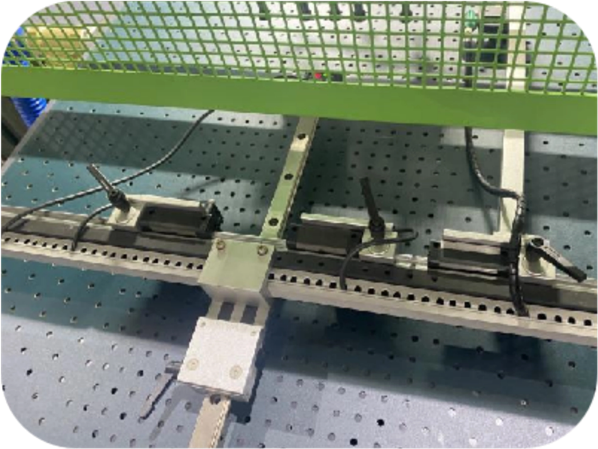

Photoelectric Induction Rectification

After the cloth gluing, servo motor controls the conveyor belt to rectify the deviation through photoelectric induction automatically.

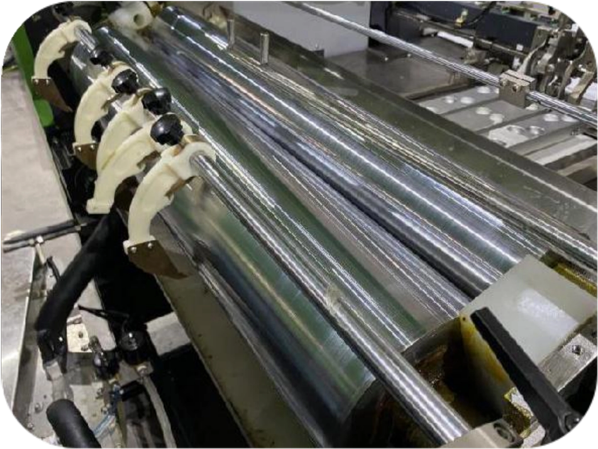

Integrated Sol Box

Adopts outside heats water, inside glue, which is removable and easy to clean. Outside glue box is automatic water level monitoring and low level alarm to avoid heating exceeding. Automatic setting and monitoring glue viscosity.

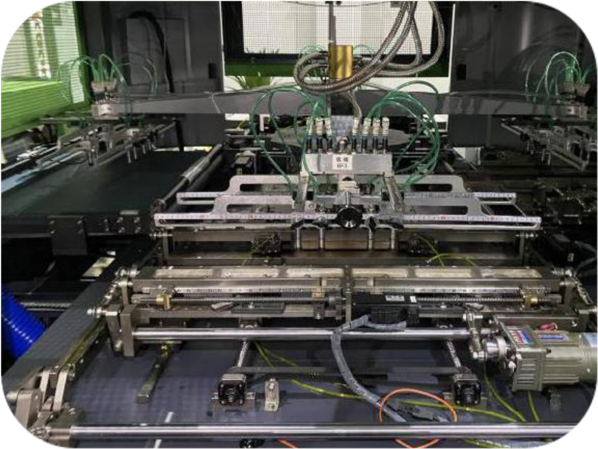

360° Rotation Four Station

From non stop board feeding, cloth bonding to board, wrapping long side, and wrapping short side in one line.

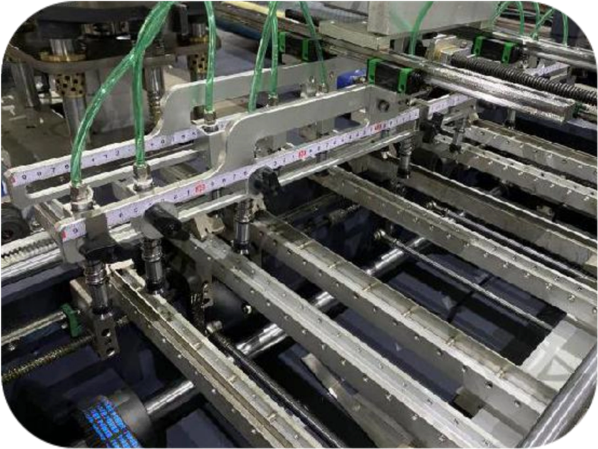

Board Suction Device

The width of the case is adjusted by the ball screw, and the length off the case is adjusted by the sliding groove, more easy, precisely and convenient.

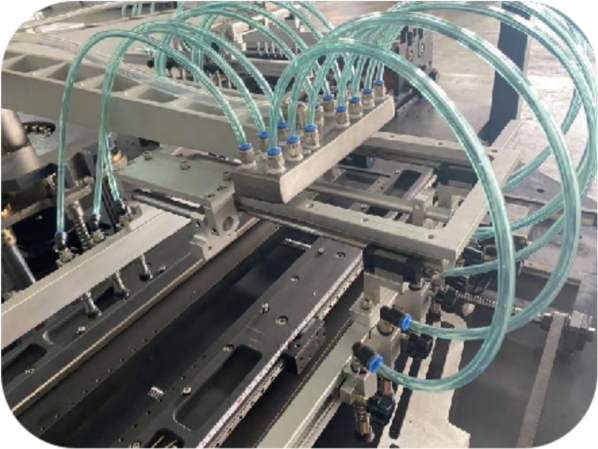

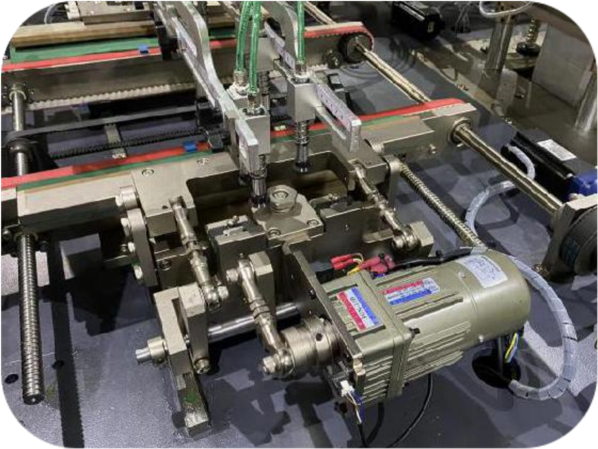

Side Wrapping Mechanism

Adopts servo motor system to automatic adjust the length and width with oblique pressure wrapping way, which is more close.

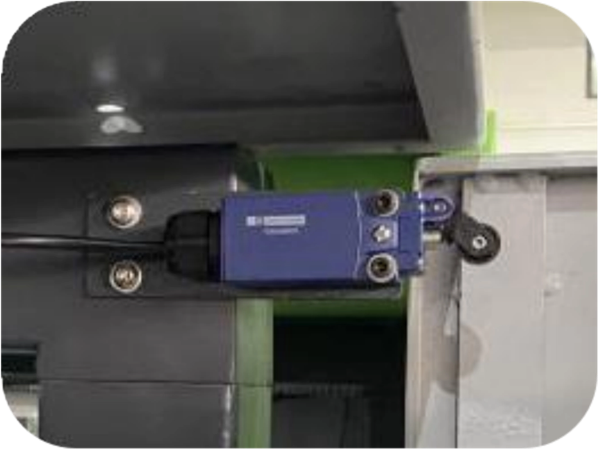

Safety Door Device

When the machine door open, it will have alarm on the touch screen.

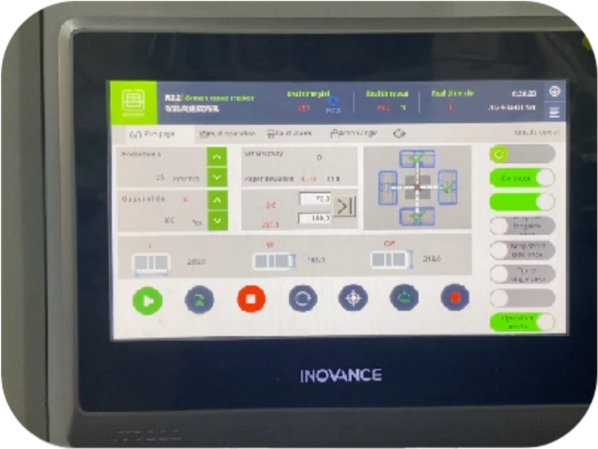

Touch Screen and Remote Monitor

Remote date monitoring and fault detect. Available access to factory ERP system, production data and so on. Easy for after sales service.
