Samples and Applications
Food Packaging
Key Features
High Speed & Stable Production
Production Speed: Up to 500 pieces per minute (depending on bag size and paper material)
Servo Motor Control: High-precision servo drive system ensures stable operation and accurate positioning
PLC Control System: Intelligent control with touch screen interface for easy operation and parameter adjustment
Superior Quality Output
Precise V-bottom Forming: Professional V-bottom folding mechanism creates neat, firm, and well-shaped V-shaped bottoms
Strong Sealing: Advanced gluing system ensures strong and leak-proof bottom seals
Consistent Dimensions Dimensions: High-precision cutting system guarantees uniform bag size with ±0.5mm tolerance
Versatile & Flexible
Wide Material Range: Suitable for kraft paper, white cardboard, coated paper, recycled paper
Adjustable Bag Size: Easy to change bag dimensions without replacing molds, suitable for various specifications
Multi-function Options: Can be equipped with handle attachment unit, window patching unit, printing unit according to customer needs
Intelligent & User-friendly
Touch Screen Operation: Human-machine interface with intuitive operation
Auto Counting & Stacking: Finished bags automatically counted and neatly stacked
Fault Detection: Built-in sensors detect paper jams, glue shortage, and other issues with automatic alarm
Low Maintenance: Modular design for easy maintenance and parts replacement

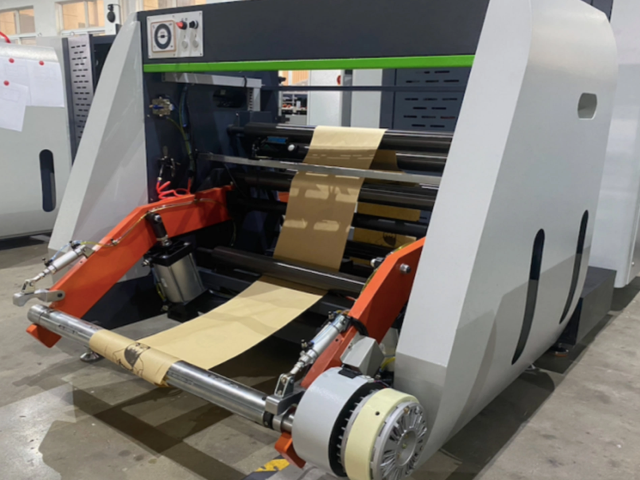

The lifting is driven by air cylinders, easy and fast to change the paper roll.
|
The paper tension adopts magnetic powder brake, make the paper feeding more stable and evenly.
|
The side position adjustment adopts the ultrasonic system, more stable,Will not cause errors because of paper dust, more accurate than ordinary photoelectric sensors.
|
Paper sheet the automatic servo motor source correction system: fast response and make sure saving the correction time.
|

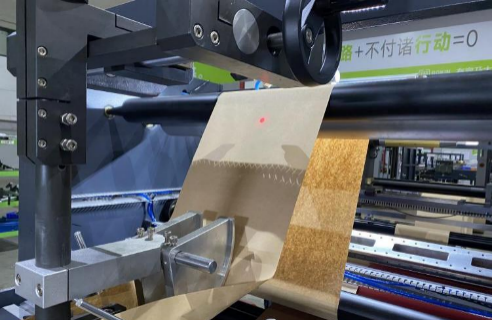

Paper sheet tooth break is controlled by servo motor, and adopts high speed uniform rotation piercing hole to make the cutting in good quality, adopts Yaskawa from Japan.
|
Automatic side gluing system, can adjust the glue volume.
|
Senor to achieve the automatic color mark position adjustment, adopts Germany brand SICK.
|
Infrared sensor to make the machine stop when lake of material or broken material.
|
