Square Bottom Paper Bag Machine for Kraft Shopping Bag Production

In a world rapidly moving away from single-use plastics, kraft paper has emerged as the go-to material for sustainable packaging. This global transition has sparked a significant demand for Self-Opening Square (SOS) bags, prized for their durability, branding potential, and eco-friendly credentials. For businesses in retail, food service, and luxury goods, this shift is not just a trend but a major commercial opportunity. Investing in a high-speed square bottom paper bag machine becomes a strategic move to capitalize on this growing market and gain a competitive edge. This article serves as a comprehensive technical guide, designed to help you evaluate machine configurations, understand production efficiencies, and accurately calculate the return on investment for your next capital expenditure.

Key Takeaways

• Technology Choice: Roll-fed machines dominate high-volume production, while sheet-fed models are essential for high-end, luxury kraft bags.

• Efficiency Drivers: Look for \"Dual Plate\" technology and \"Pre-stacking\" systems to minimize downtime during size changeovers and loading.

• Component Quality: Reliability is tied to international component standards (e.g., Yaskawa, Schneider, ABB).

• Operational ROI: Beyond speed, ROI is driven by waste reduction (EPC systems) and automated glue precision.

Roll-Fed vs. Sheet-Fed: Choosing the Right Machine for Your Output

Selecting the right machinery is the foundational decision in paper bag manufacturing. The primary choice lies between roll-fed and sheet-fed systems, each designed to serve distinct market segments and production scales. Your decision will directly impact your production speed, material handling capabilities, and overall cost structure. Understanding the core strengths of each type is essential for aligning your investment with your business strategy.

Roll-Fed Square Bottom Machines

Roll-fed machines are the workhorses of the high-volume paper bag industry. They are engineered for continuous, high-speed operation, making them the ideal solution for mass production environments.

• Best for: Industries requiring large quantities of standardized bags. This includes grocery stores, fast-food chains like KFC, bakeries, and general retail shopping bags. These applications prioritize speed and cost-efficiency over intricate customization.

• Advantages: The primary benefit is unparalleled production speed, with modern machines capable of producing over 200 bags per minute. This continuous operation significantly lowers labor costs per unit. Furthermore, many roll-fed models offer integrated modules for attaching paper handles, creating a complete bag in a single, streamlined process.

Sheet-Fed Square Bottom Machines

In contrast, sheet-fed machines cater to the premium and luxury markets. They process pre-cut sheets of paper, allowing for greater precision and the use of specialized materials that are often unsuitable for high-speed roll-fed systems.

• Best for: High-end applications where quality and finish are paramount. This includes luxury retail boutiques, custom gift bags, and promotional packaging. These machines excel at handling heavier paper stock, typically between 100 and 250 grams per square meter (g/m²).

• Advantages: Their key strength is versatility. Sheet-fed systems can manage a wide array of materials, including coated paper, laminated sheets, and paper with complex pre-printed finishes. This makes them perfect for short-to-medium production runs where customization and superior quality justify a higher cost per unit.

Decision Lens: Balancing CAPEX and Market Needs

Your final choice should be a calculated balance between initial capital expenditure (CAPEX) and the specific demands of your target market. A roll-fed machine requires a higher upfront investment but delivers a lower cost per bag at high volumes. A sheet-fed machine has a lower initial cost but a higher operational cost per unit, making it suitable for high-margin, lower-volume products.

Analyze your business model: Are you aiming to be a high-volume supplier for commodity markets or a specialized provider for boutique brands? The answer will guide you to the right machine technology.

Critical Technical Features for High-Performance Production

Beyond the basic choice of roll-fed or sheet-fed, the specific technical features of a machine determine its performance, reliability, and precision. High-performance production is not just about speed; it is about maintaining quality and consistency at that speed. Investing in advanced technology is critical for minimizing waste, reducing downtime, and ensuring the structural integrity of every bag produced.

Advanced Motion Control

The heart of a modern square bottom paper bag machine is its Programmable Logic Controller (PLC) and servo system. Industry-leading manufacturers rely on high-end motion control systems, such as those from Japanese firm Yaskawa, to synchronize all mechanical movements with exceptional accuracy. A robust PLC ensures that the paper feeding, cutting, folding, and gluing processes remain perfectly timed, even at speeds exceeding 200 bags per minute. This stability prevents jams, misalignments, and defects, which are common issues in machines with inferior control systems.

Dual Glue Technology

The adhesive system is crucial for the bag's structural integrity. A superior machine incorporates a dual glue system that combines water-based cold glue and hot-melt glue.

• Water-Based Glue: Used for the main body seams, it provides a strong, cost-effective bond that cures over time.

• Hot-Melt Glue: Applied to the bottom seal, it sets almost instantly, ensuring the bag can be stacked and packed immediately without risk of the bottom failing.

This dual approach is especially important when working with diverse paper types. For instance, recycled kraft paper can have different porosity than virgin kraft, and a flexible gluing system ensures a reliable bond regardless of the material.

Precision Handling

Two key technologies are responsible for material handling precision:

1. EPC (Electronic Pressure Control) & Web Guiders: For roll-fed machines, an EPC system, often called a web guider, is non-negotiable. It uses sensors to monitor the edge of the paper roll and makes micro-adjustments to keep it perfectly aligned as it feeds into the machine. This automated alignment is vital for preventing material drift, which leads to skewed bags and significant material waste.

2. Servo-Driven Cutting: Traditional machines might use mechanical gears for cutting, which require manual adjustments. Modern systems use a dedicated servo motor for the cutting mechanism. This allows operators to set the bag length via a touchscreen interface, achieving millimeter-perfect cuts every time. It eliminates human error and dramatically speeds up size changeovers.

The \"Dual Plate\" Advantage

Downtime during size changeovers is a major source of lost productivity. The \"Dual Plate\" system is an innovative mechanical design that directly addresses this problem. In a conventional machine, changing the bag width often requires replacing a heavy forming template—a time-consuming and labor-intensive task. The Dual Plate system features symmetrical, adjustable structures that can be moved inward or outward to accommodate different bag dimensions. This means operators can change sizes quickly through simple adjustments, often without needing to replace any major components. This feature alone can save hours of downtime each week, boosting overall operational efficiency.

Operational Efficiency: Maximizing Throughput and Minimizing Downtime

Operational efficiency is the true measure of a machine's value. It extends beyond raw production speed to encompass every aspect of the workflow, from material loading to quality control. A well-designed machine incorporates features that maximize uptime, reduce manual intervention, and ensure a consistent, high-quality output. These efficiencies are what ultimately drive profitability in a competitive market.

Non-Stop Feeding Systems

In high-volume production, every stop to reload raw materials is a loss of potential revenue. To combat this, advanced roll-fed machines use hydraulic lift systems for loading heavy paper rolls, while premium sheet-fed machines utilize a \"pre-stacking flyer system.\" This system allows an operator to load a new stack of paper sheets while the machine is still running on the current stack. As the first stack depletes, the machine automatically begins feeding from the pre-loaded second stack, ensuring continuous, uninterrupted production. This non-stop feeding capability is essential for fulfilling large orders efficiently.

Automated Lubrication & Cooling

The longevity of any high-speed mechanical equipment depends on proper maintenance. Top-tier machines feature automated central lubrication systems that deliver a precise amount of oil to critical moving parts at regular intervals. This prevents wear and tear caused by friction and heat. Additionally, the sensitive electronics that control the machine are housed in cabinets equipped with dedicated air conditioning units. This protects the PLC, servo drives, and inverters from overheating, a common cause of electronic failure in demanding factory environments. These automated systems extend the machine's lifespan and prevent costly, unplanned downtime.

Waste Management

Delivering a perfect batch of bags is critical for client satisfaction. Modern machines can be equipped with visual detection systems that use cameras to inspect each bag as it is produced. If the system detects a defect—such as a glue smear, a misaligned seam, or a tear—it automatically triggers a rejection mechanism that removes the faulty bag from the production line. This ensures that only 100% quality-checked bags reach the final collection stack, eliminating the need for manual inspection and guaranteeing a perfect final product.

Technical Formula for Planning

Efficient production planning starts with understanding your material requirements. Before ordering paper rolls, you need to calculate the correct width needed for a specific bag size. The standard industry formula is straightforward and essential for minimizing waste:

Paper Width = (2 × Bag Width) + (2 × Gusset Width) + Side Gluing Overlap

Let's use an example:

• Desired Bag Width: 250 mm

• Desired Gusset Width: 100 mm

• Standard Side Gluing Overlap: 20 mm

Calculation:

Paper Width = (2 × 250 mm) + (2 × 100 mm) + 20 mm
Paper Width = 500 mm + 200 mm + 20 mm
Required Paper Width = 720 mm

Using this formula ensures you order the correct material, preventing costly errors and waste.

Evaluating Total Cost of Ownership (TCO) and ROI

A smart investment in a paper bag making machine goes beyond the initial purchase price. The Total Cost of Ownership (TCO) provides a more holistic view, factoring in operational costs, labor, energy consumption, and maintenance over the machine's lifespan. A thorough evaluation of these elements reveals the true return on investment (ROI) and helps differentiate a seemingly cheaper machine from one that offers superior long-term value.

Labor Reduction

One of the most significant ROI drivers is the reduction in labor costs. Moving from a semi-automatic setup—which may require separate machines or manual processes for bag forming, bottom pasting, and handle attachment—to a fully automatic \"one-stop\" production line creates immense efficiency. A modern, fully integrated machine performs every step from paper roll to finished, handled bag in a single, continuous pass. This consolidation can reduce the required number of operators by half or more, freeing up valuable human resources and directly impacting your bottom line.

Material Versatility

A machine's ability to handle a wide range of materials directly translates to a larger addressable market. Look for a machine capable of processing a broad spectrum of paper weights (GSM), from lightweight 60 g/m² paper for bakery bags to heavy-duty 250 g/m² stock for luxury retail. Furthermore, the capacity to work with different paper types—such as standard kraft, recycled paper, laminated sheets, or even paper with a pre-cut window for food products—allows you to serve multiple industries with a single piece of equipment. This versatility future-proofs your investment and opens up diverse revenue streams.

Energy Efficiency

In an era of rising energy costs, efficiency is a critical component of TCO. Modern machines are equipped with inverter-driven motors that adjust power consumption based on the operational load. Unlike older motors that run at full power continuously, these smart systems significantly reduce electricity usage, especially during startups and speed changes. Over the course of a year, these energy savings can amount to thousands of dollars, contributing directly to a faster ROI.

Support & Compliance

Long-term reliability depends heavily on the manufacturer's support and the machine's compliance with international standards. Certifications like CE (for Europe), UL (for the United States), and CSA (for Canada) are not just formalities; they are proof that the machine meets stringent safety and quality standards. Furthermore, inquire about the availability of remote technical support. Many modern PLCs can be accessed remotely by the manufacturer's technicians, allowing for rapid troubleshooting and software updates without the need for an expensive on-site visit. This level of support is invaluable for minimizing downtime and ensuring smooth operation for years to come.

Implementation & Scalability: From Installation to Full Capacity

Purchasing a machine is only the first step. A successful implementation plan covers pre-shipment testing, installation, and a forward-looking strategy for maintenance and future growth. A strategic approach ensures you not only get the machine running smoothly but can also scale your operations as your business expands.

Factory Testing Protocols

Trustworthy manufacturers adhere to rigorous pre-shipment testing protocols. The industry standard is a continuous 7-day internal factory test. During this period, the manufacturer runs the machine with your specified paper materials and bag dimensions to simulate real-world production conditions. This process verifies the machine's stability, speed, and output quality before it ever leaves the factory. Insisting on this verification step is a critical risk-mitigation measure, ensuring that the machine you receive is ready for production and free from manufacturing defects.

Modular Expansion

Your business needs today may not be your needs tomorrow. A key consideration should be the machine's potential for modular expansion. A well-designed production line allows you to add auxiliary units as your business grows. You might start with a core bag-forming unit and later add:

• A paper handle maker and applicator unit to produce shopping bags.

• A paper rope making machine to create your own handle materials in-house.

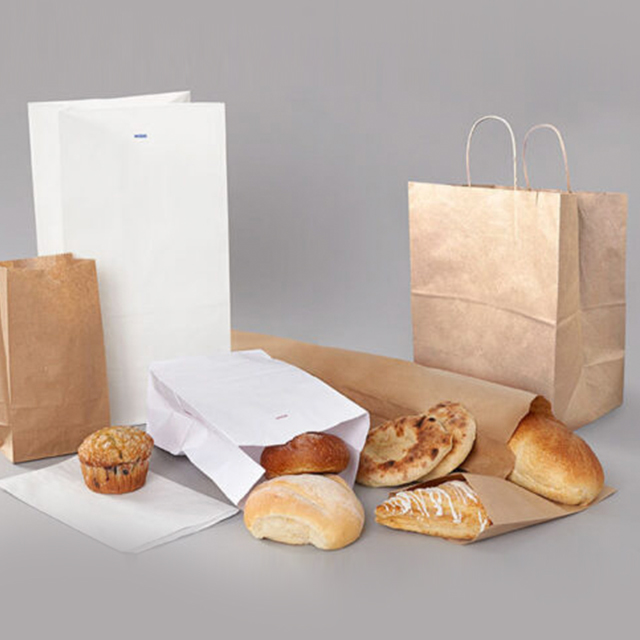

• A window-cutting module to produce bags for bakery or confectionery products.

This modular approach allows you to scale your capabilities in line with market demand, protecting your initial investment and enabling a phased growth strategy.

Maintenance Realities

Even the best-built machines require consistent maintenance to prevent unplanned downtime. High-quality components like EN8 hard chrome shafts and SKF bearings are designed for durability, but their lifespan is maximized through a preventative maintenance schedule. Work with your manufacturer to establish a clear plan that includes:

1. Daily Checks: Visual inspection of key parts and cleaning of glue systems.

2. Weekly Tasks: Lubrication of specific chains and gears as recommended.

3. Monthly/Quarterly Reviews: Inspection of wear parts like cutting blades and rubber rollers, and verification of sensor calibrations.

Proactive maintenance is far less costly than reactive repairs. A structured schedule ensures maximum machine availability and protects your production capacity from unexpected interruptions.

Conclusion

Selecting the right square bottom paper bag machine is a strategic decision that hinges on a clear understanding of your business objectives. The optimal choice requires aligning the machine's core capabilities—production speed, paper weight capacity, and automation level—with your specific market niche and volume targets. Whether you are aiming for high-volume commodity production with a roll-fed system or bespoke luxury packaging with a sheet-fed model, the technical details are what define long-term success. Focus on features that drive efficiency, such as non-stop feeding and quick changeover systems, and invest in precision components that guarantee quality.

As a final recommendation, prioritize manufacturers who offer transparency in their component sourcing and can demonstrate a proven track record of successful exports and reliable after-sales support. A durable, efficient machine backed by a supportive partner is not just a piece of equipment; it is the engine of your growth in the expanding sustainable packaging market.

FAQ

Q: What is the difference between a V-bottom and a square bottom paper bag machine?

A: The primary difference is the base structure of the bag. A square bottom machine creates a bag with a flat, rectangular base that allows it to stand upright on its own. This makes it ideal for groceries and retail items. A V-bottom machine produces a simpler, flat bag with a sealed, pointed base, suitable for lightweight items like pastries or pharmaceuticals where self-standing capability is not required.

Q: Can one machine produce multiple bag sizes?

A: Yes, absolutely. Modern square bottom paper bag machines are designed with adjustable forming templates and servo-controlled systems. Operators can change the bag's length, width, and gusset size via a human-machine interface (HMI). Advanced features like \"Dual Plate\" technology further reduce changeover times, which can range from 30 minutes to a few hours depending on the complexity of the size change and machine design.

Q: What is the typical lead time for a custom-configured machine?

A: The lead time can vary significantly based on the manufacturer's production schedule and the complexity of your configuration. Generally, you can expect a lead time of 60 to 120 days from the date of order confirmation. This period includes manufacturing, assembly, custom modifications (like adding a window unit), and the mandatory pre-shipment factory testing.

Q: How does paper GSM affect machine speed?

A: Paper GSM (grams per square meter) has a direct impact on machine speed. Lighter paper (e.g., 60-80 GSM) can typically run at the machine's maximum rated speed. As you increase the paper weight and stiffness (e.g., 120-150 GSM or higher), you must reduce the machine speed to ensure proper creasing, folding, and gluing without tearing or damaging the material. Manufacturers provide a recommended speed range for different paper weights.

Q: What are the space and power requirements for an industrial-scale setup?

A: An industrial-scale, fully automatic machine is a large piece of equipment. A complete line, including the main machine, handle-making unit, and collection table, can be over 15 to 20 meters long. You should budget for a total footprint of at least 150-200 square meters to allow for the machine, raw material storage, and operator access. Power requirements are typically 3-phase, 380V/50Hz, with a total power load ranging from 25 to 40 kW depending on the configuration.
