What Is a Flat Handle Paper Bag Machine and Who Needs It?

The humble paper bag has a surprisingly innovative history. It all started in 1870 when Margaret Knight invented a machine to produce the flat-bottom paper bags we still use today. Her invention transformed retail and laid the groundwork for modern packaging. Now, over 150 years later, this technology is experiencing a powerful resurgence. A global push against single-use plastics has turned the paper bag from a simple container into a critical asset for sustainable business. Anti-plastic legislation is transforming the paper bag making machine from a niche utility into essential infrastructure. Specifically, the flat handle paper bag machine—an automated system for high-volume, carry-out packaging—is at the forefront of this shift. This guide explores what this machine is, how it works, and who stands to benefit most from investing in one.

Key Takeaways

• Efficiency: Modern machines produce 30–110 handle-attached bags per minute, significantly reducing labor costs.

• Sustainability: Flat handle bags offer superior recyclability and lower transport volume compared to twisted handle alternatives.

• Target Audience: Ideal for high-volume retail, food delivery, and industrial packaging sectors requiring durable, stackable solutions.

• Investment ROI: Success depends on matching automation levels (Servo vs. Mechanical) with specific production volume targets.

1. Understanding the Flat Handle Paper Bag Machine: Mechanics and Components

At its core, a flat handle paper bag machine is a marvel of industrial automation. It transforms a simple roll of paper into a finished, ready-to-use carry bag through a precise and synchronized sequence of operations. This process eliminates manual intervention, ensuring consistency and high output.

The 6-Step Automated Workflow

The journey from raw material to finished product is a seamless, high-speed process. While specifics vary between models, the fundamental workflow follows these key stages:

1. Roll Feeding: A large paper roll is mounted on a hydraulic unwinding stand. An automatic tension control system ensures the paper feeds into the machine smoothly and without creasing or tearing.

2. Handle Patch Application: In a separate but synchronized unit, flat paper handles are formed and glued onto a patch of reinforcement paper. This handle unit is then precisely cut and applied to the main paper web.

3. Tube Forming: The paper web, now with handle patches attached, is fed into the main machine section. Here, it is folded around a forming plate, and a line of cold water-based glue is applied to one edge to create a continuous paper tube.

4. Cutting: The long paper tube travels through the machine, where a high-speed cutting mechanism, often a serrated blade on a rotating drum, cuts it into individual bag-length sections.

5. Bottom Forming & Gluing: Each cut tube is then transferred to the bottom-forming section. A series of mechanical grippers and folders opens, folds, and glues the bottom, creating the classic square-bottom shape that allows the bag to stand upright.

6. Bag Collection: Finally, the finished bags are ejected from the machine and neatly stacked on a collection table, ready for packing and shipping.

Anatomy of the Bag

Understanding the final product helps appreciate the machine's precision. A flat handle bag consists of a few key structural elements:

• Body Panels: The front and back faces of the bag, which provide the primary surface for branding.

• Side Gussets: The folded-in sides that allow the bag to expand and hold volume.

• Square Bottom: The complex fold at the base that provides stability and load-bearing strength.

• Flat Handle Attachment: A single paper patch with the handle loop is glued to the interior of the bag's top edge. This design is strong, uses less material, and allows for efficient stacking.

Technical Core

The brain of a modern flat handle paper bag machine is its Programmable Logic Controller (PLC). High-end systems from manufacturers like Mitsubishi or Siemens orchestrate every movement. They work in tandem with servo motors, which provide incredibly precise control over the paper's movement, cutting, and folding. This combination is crucial for maintaining tight tolerances at speeds exceeding 100 bags per minute, minimizing waste and ensuring every bag is identical.

Material Versatility

These machines are engineered to be flexible. They can handle a wide range of paper types, typically kraft or recycled paper, with weights (measured in grams per square meter, or GSM) from 70 to 120 GSM. Lighter paper is suitable for bakery or small retail items, while heavier GSM paper is used for grocery bags that need to carry more weight. The adhesive used is almost universally a water-based glue, which is eco-friendly, cost-effective, and compliant with food safety regulations.

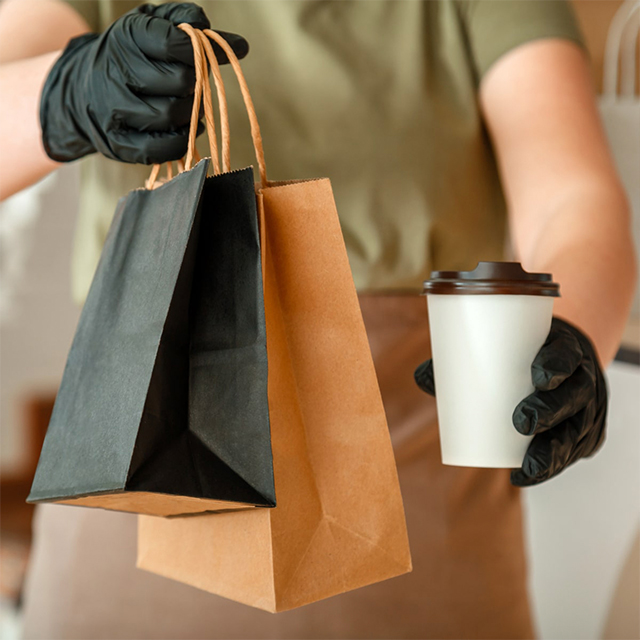

2. Flat Handle vs. Twisted Handle: Which Solution Fits Your Business?

Choosing between a flat handle and a twisted handle bag is a strategic decision that impacts cost, logistics, branding, and customer perception. While both serve the same basic function, their construction and characteristics cater to different market needs. Understanding these differences is key to selecting the right paper bag making machine for your operation.

Structural Differences

The primary difference lies in the handle's construction and attachment. A flat handle is made from a folded strip of paper, glued to a reinforcement patch, which is then attached directly to the inside wall of the bag. This \"single-patch\" method is material-efficient and creates a low profile. In contrast, a twisted handle is made from spun paper cord, which is threaded through a more substantial reinforcement patch and glued in place. This method provides a round, rope-like handle that is often perceived as more comfortable and premium.

Logistics and Storage

This is where the flat handle design truly shines. Because the handles are flat and can be folded inward (a design popularized as the \"ZONO style\"), the bags can be packed and stacked with virtually no wasted space. This significantly reduces shipping volume and the warehouse footprint required for storage. Twisted handles, being bulkier, create more air gaps when boxed, increasing logistics costs per unit. For businesses shipping large quantities or operating with limited storage, the efficiency of flat handles is a major advantage.

Cost-to-Output Ratio

From a production standpoint, flat handles are more economical. The handle itself requires less paper to construct compared to the spun cord of a twisted handle. The single-patch application process is also typically faster and simpler from a mechanical perspective. This results in lower material costs and potentially higher machine output. Twisted handles, on the other hand, command a higher price point, aligning with a \"luxury\" or \"boutique\" feel. The choice often comes down to your brand's positioning: cost-effective utility versus premium presentation.

Load-Bearing Reality

A common misconception is that twisted handles are inherently stronger. While they may feel more robust, a well-constructed flat handle bag made from appropriate GSM paper can comfortably handle significant weight. Most standard flat handle bags used in grocery and retail are rated for a load-bearing capacity between 5kg and 10kg (11 to 22 lbs). This is more than sufficient for everyday shopping, making them a practical and reliable choice for the vast majority of consumer applications.

3. Who Needs a Flat Handle Paper Bag Machine? (Market Segmentation)

Investing in a flat handle paper bag machine is a significant capital expenditure. It's not for everyone. The decision to bring production in-house hinges on volume, supply chain control, and market strategy. Certain business segments are perfectly positioned to reap the benefits of this technology.

The High-Volume Retailer

Large grocery chains, department stores, and fast-fashion brands consume millions of bags annually. For them, relying on external suppliers introduces variables in cost, quality, and lead times. By investing in their own flat handle paper bag machine, these retailers achieve vertical integration. They gain complete control over their packaging supply chain, ensuring bags are always available and meet brand standards. This move can dramatically reduce per-unit costs and eliminate the logistical headaches of managing third-party orders.

Food & Beverage Franchises

For quick-service restaurants, cafes, and food delivery services, the paper bag is more than just a container; it's part of the product experience. The square bottom is a non-negotiable feature. It provides a stable base for stacking food containers, preventing spills and ensuring the product arrives intact. In-house production allows these franchises to customize bag sizes for specific meal combos, print branding directly on the bag, and maintain a consistent, reliable supply across all their locations, which is critical for operational efficiency.

Packaging Manufacturers

Existing packaging converters who specialize in boxes, labels, or other materials are prime candidates for diversification. As global regulations like the EU's \"Ban on Plastics\" and similar initiatives in North America create a surge in demand for paper alternatives, adding paper bag production is a logical expansion. A flat handle paper bag machine allows them to offer a comprehensive suite of sustainable packaging solutions. They can serve a broad range of clients who are urgently seeking plastic-free alternatives, capturing a rapidly growing market segment.

Small-to-Medium Enterprises (SMEs)

While high-speed, fully automatic lines are geared for massive output, the market also offers solutions for smaller players. SMEs, such as regional bakery chains, local retailers, or startup packaging companies, can benefit from this technology. Their decision point involves evaluating entry-level semi-automatic machines versus more efficient, fully automatic lines. A semi-automatic machine has a lower initial cost but requires more labor. A fully automatic line is a larger investment but offers lower long-term operational costs and the ability to scale. The right choice depends on their current volume and their strategy for local market capture.

4. Key Evaluation Criteria: Choosing the Right Machine

Selecting the right flat handle paper bag machine is a complex process that goes beyond comparing speeds and prices. A smart investment requires a careful evaluation of automation levels, precision systems, scalability, and compliance to ensure the machine meets both current needs and future growth.

Automation Tiers

The level of automation directly impacts capital expenditure (CAPEX), labor requirements, and output. Machines generally fall into distinct tiers:

• Entry-Level / Semi-Automatic: These machines might produce around 50–80 bags per minute. They often require more manual oversight for tasks like loading materials or packing finished bags. The initial CAPEX is lower, making them accessible for SMEs, but operational costs can be higher due to increased labor needs.

• Industrial Mid-Range: Operating in the 80-150 bags/min range, these are often fully automatic machines that represent a balance of investment and output. They are a popular choice for established packaging manufacturers and large retailers.

• Industrial High-Speed: These are the top-tier systems, capable of producing over 200 bags per minute. They are built for 24/7 operation with minimal human intervention, often requiring just one operator to monitor the process and manage materials. The CAPEX is high, but the per-unit production cost is extremely low, delivering the best ROI for very high-volume scenarios.

Precision Systems

In high-speed production, waste is a major cost factor. Modern machines incorporate advanced systems to minimize it. Two of the most critical are:

• EPC (Edge Position Control): This is an automated guidance system that uses sensors to ensure the paper web remains perfectly aligned as it feeds into the machine. Without it, slight misalignments can lead to crooked tubes, improperly placed handles, and a high rate of rejected bags.

• Tension Control: An automatic system that maintains consistent tension on the paper roll as it unwinds. Too little tension causes the paper to sag and crease; too much can cause it to stretch or tear. Proper tension control is essential for smooth operation and waste reduction.

Scalability & Modular Features

Your business needs may evolve. A future-proof machine should offer scalability. Look for models with a modular design that allows for future upgrades. Key features to consider include:

• Inline Multi-Color Printing: The ability to add a flexographic printing unit directly to the machine. This allows you to print branding, logos, and promotional messages on the paper web before it is formed into a bag, creating a highly efficient one-pass production process.

• Die-Cut Window Attachments: A module that can cut a window in the bag's body and apply a clear film. This is a popular feature for food products like bread or pastries, allowing customers to see the product inside.

Compliance & Safety

Industrial machinery must adhere to strict safety and quality standards. Ensure any machine you consider meets internationally recognized certifications. CE marking is mandatory for machinery sold within the European Economic Area and indicates compliance with health, safety, and environmental protection standards. ISO certification (e.g., ISO 9001) demonstrates that the manufacturer follows a robust quality management system. These certifications are not just formalities; they are assurances of the equipment's electrical stability, operator safety features, and overall manufacturing quality.

5. Total Cost of Ownership (TCO) and Implementation Realities

The sticker price of a paper bag making machine is only the beginning of the story. To make a sound financial decision, you must evaluate the Total Cost of Ownership (TCO), which encompasses all expenses over the machine's lifespan. Understanding the practical realities of implementation is just as crucial.

Initial Investment vs. Long-Term ROI

Moving beyond the initial purchase price requires analyzing ongoing operational costs. A cheaper machine with poor energy efficiency or a high waste rate can quickly become more expensive than a pricier, more efficient model. Key factors to include in your ROI calculation are:

• Energy Consumption: High-speed machines use powerful motors and heating elements. Compare the kilowatt-hour (kWh) ratings between models.

• Waste Rates: Ask manufacturers for their machine's typical paper waste percentage. A 1% difference can translate to thousands of dollars in saved material costs over a year.

• Consumables: Factor in the cost of glue, spare parts (like blades and grippers), and lubricants.

Staffing and Expertise

The \"one-operator\" claim made by many manufacturers is true, but with a caveat. While one person can monitor a fully automatic line, that person needs to be well-trained. They are not just a laborer; they are a machine technician. Training should cover more than basic operation. Your operator must be comfortable with the PLC interface for troubleshooting error codes and capable of making fine mechanical adjustments to ensure consistent quality. Plan for comprehensive training from the manufacturer and ongoing skill development for your team.

Facility Requirements

A flat handle paper bag machine is a large piece of industrial equipment with specific infrastructure needs. Before purchase, you must prepare your facility. A typical fully automatic line requires a significant physical footprint, often around 15 meters long by 6 meters wide (approximately 50 ft x 20 ft), including space for paper roll storage and finished goods. You must also ensure your facility can provide the necessary three-phase power supply and a compressed air system, as many of the machine's pneumatic components rely on it.

Maintenance Cycles

With proper care, an industrial paper bag making machine can have a lifespan of 20 to 30 years. Achieving this longevity depends entirely on a rigorous preventative maintenance schedule. Neglecting maintenance leads to unplanned downtime and costly repairs. Work with the manufacturer to establish a detailed checklist, which should include:

• Daily: Cleaning the glue system to prevent clogs, checking sensors for debris.

• Weekly: Lubricating all moving parts (chains, gears, bearings) according to the machine's manual.

• Monthly: Inspecting and rotating cutting blades, calibrating sensors.

• Annually: A full inspection by a certified technician, potentially replacing worn belts and bearings.

6. Shortlisting Logic: Moving from Research to Purchase

Once you understand the technical and financial aspects, the final step is to create a logical process for selecting a specific machine and vendor. This structured approach helps ensure your final choice is perfectly aligned with your business objectives.

Defining Your Output Profile

Before you can evaluate machines, you must clearly define what you need to produce. Don't just think about volume; be specific about the bags themselves. Create a specification sheet that includes:

• Bag Dimensions: The range of widths, side gusset depths, and lengths you need to produce.

• Paper Specifications: The GSM range and types of paper (e.g., kraft, recycled) you will use.

• Handle Dimensions: The required width and length of the flat handles.

Every machine has a specific range of sizes it can produce. Matching your required output profile to a machine's capabilities is the most critical first step in shortlisting potential models.

Vendor Vetting

The machine is only as good as the company that stands behind it. The long-term success of your investment heavily depends on the manufacturer's support. When evaluating vendors, look beyond the sales pitch and investigate their after-sales service:

• Spare Parts Availability: How quickly can they ship critical replacement parts? Do they keep a stock of common wear-and-tear items? Downtime waiting for a part can be extremely costly.

• Technical Support: Do they offer 24/7 support? Can their technicians provide remote diagnostics by connecting to your machine's PLC online? This can resolve many issues without waiting for an on-site visit.

• Installation and Training: Confirm that comprehensive on-site installation and operator training are included in the purchase price.

The \"Test Run\" Requirement

Never finalize a purchase without seeing the machine perform with your specific materials. This is known as a Factory Acceptance Test (FAT). A reputable manufacturer will invite you to their facility (or conduct a detailed video test) to run the machine using your paper stock and glue. This is your opportunity to:

• Verify the machine meets the advertised production speeds and quality standards.

• Check the consistency of the final product.

• Ensure the machine handles your specific paper without jamming or tearing.

The FAT is your final quality control check before the machine is shipped. It is a critical, non-negotiable step that protects your investment and ensures there are no surprises upon delivery.

Conclusion

Investing in a flat handle paper bag machine is more than just a capital purchase; it's a strategic move toward efficiency, sustainability, and supply chain control. It transforms a recurring operational expense—buying bags—into a value-generating asset. By producing bags in-house, businesses can lower costs, respond faster to market demands, and visibly demonstrate their commitment to environmentally responsible practices. This machine is both a powerful production tool and a clear statement of a company's modern values.

As you move forward, focus on a \"future-proof\" investment. Prioritize high-automation systems equipped with precision controls. While the initial cost may be higher, these machines offer the lowest long-term cost of ownership. They are the best defense against rising labor costs and the most effective way to meet the ever-increasing demands of global environmental regulations. Choosing the right machine prepares your business not just for today's market, but for the sustainable economy of tomorrow.

FAQ

Q: How many operators are needed for a fully automatic flat handle paper bag machine?

A: Typically, only one or two operators are needed. One trained operator can monitor the machine's functions, replenish paper rolls, and manage the glue supply. A second person may be needed for packing the finished bags into boxes, especially on very high-speed lines, unless an automated packing system is integrated.

Q: What is the average lifespan of an industrial paper bag making machine?

A: With proper and consistent preventative maintenance, a well-built industrial paper bag making machine can have a productive lifespan of 25 to 30 years. The longevity depends heavily on following the manufacturer's maintenance schedule for lubrication, cleaning, and timely replacement of wear parts.

Q: Can one machine produce multiple bag sizes?

A: Yes, modern machines are designed for flexibility. They can produce a range of bag sizes within specific minimum and maximum limits for width, length, and gusset depth. Changing between sizes requires adjusting the settings and, in some cases, changing out the forming plate or molds. This changeover process can take a few hours.

Q: What is the difference between water-based glue and hot melt in bag production?

A: Water-based glue is the industry standard for its eco-friendliness, low cost, and food-safe properties. It dries by absorption into the paper. Hot melt glue is a thermoplastic adhesive that sets very quickly as it cools, which can be useful for certain high-speed applications. However, it is less common for standard bags due to higher costs and lower eco-compliance.

Q: How does the \"internal fold\" handle benefit the end-user?

A: The internal fold, where the flat handle is folded inside the bag gusset during production, offers two main benefits. First, it creates a cleaner, more streamlined aesthetic when the bags are on display. Second, it makes the bags extremely efficient to stack and pack, reducing shipping and storage space for the business buying the bags.
