What Is a Square Bottom Paper Bag Machine?

As consumer preferences and global regulations pivot towards sustainability, businesses are rapidly abandoning single-use plastics. This shift has elevated paper packaging from a simple container to a strategic branding tool. In this new landscape, the square bottom paper bag has emerged as the gold standard for retail, e-commerce, and food service due to its structural stability and premium feel. A square bottom paper bag machine is the automated industrial engine that makes this possible, transforming raw paper rolls into high-strength, self-standing bags at scale. For businesses, investing in this technology is no longer just an operational upgrade; it's a strategic move to meet consumer expectations for durability, convenience, and environmental responsibility. This guide will explore the technical architecture, key evaluation criteria, and market applications of these sophisticated machines.

Key Takeaways

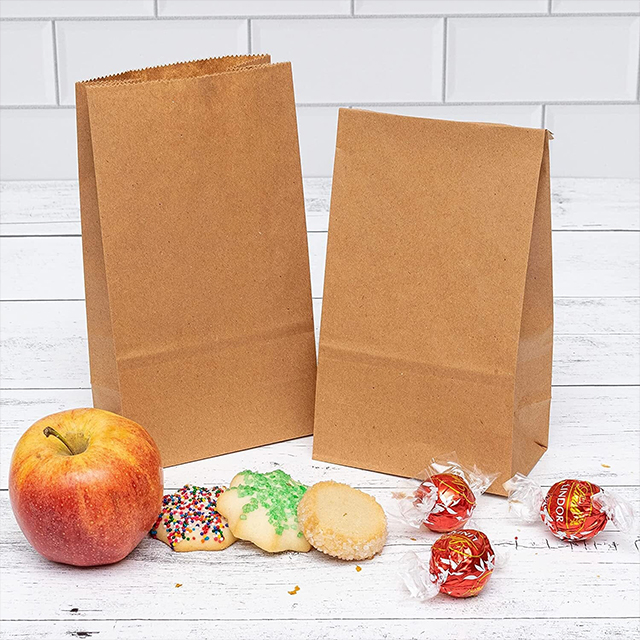

• Structural Superiority: Square bottom bags offer a flat base, allowing them to stand upright for better shelf presence and easier filling.

• Efficiency vs. Complexity: While slower than V-bottom (sharp bottom) machines, square bottom machines offer higher load-bearing capacity and premium aesthetics.

• Automation Drivers: Modern machines utilize PLC systems and servo motors to reduce labor costs and material waste.

• Customization Potential: Capabilities include inline handle attachment, die-cut windows, and multi-color printing.

1. Technical Architecture: How a Square Bottom Paper Bag Machine Operates

Understanding the inner workings of a square bottom paper bag machine reveals a highly synchronized process designed for precision and efficiency. The core mechanism is a \"roll-fed\" system, where a large parent roll of paper is continuously fed into the machine and converted into finished, folded bags without interruption. This automated workflow minimizes manual handling and ensures consistent quality across thousands of units.

The entire operation can be broken down into four primary stages, each managed by a dedicated set of components.

Main Components & Their Functions

A modern paper bag making machine integrates several complex units that work in perfect harmony. Here’s a look at the essential components and their roles in the production cycle.

Unwinding & Tension Control

The process begins at the unwinding stand, where a heavy paper roll is mounted. A pneumatic or hydraulic system often assists with lifting the roll into place. As the paper web feeds into the machine, a tension control system, typically using magnetic powder brakes or servo-driven rollers, maintains a consistent pull. Proper tension is critical; too much can cause the paper to tear (\"web break\"), while too little can lead to alignment issues and wrinkles.

Tube Forming & Side Gluing

Next, the flat paper web travels into the forming section. Here, it is precisely folded around a forming plate to create a continuous tube. At the same time, a side gluing unit applies a narrow strip of cold water-based adhesive along one edge. The other edge is then folded over to seal the seam, creating the body of the bag. The accuracy of this stage determines the bag's fundamental structural integrity.

The Bottom Forming Unit

This is the most intricate and defining part of a square bottom machine. As the paper tube moves forward, a series of mechanical grippers, cutters, and folding plates perform a complex sequence of operations.

1. The tube is cut to the specified bag length.

2. The bottom end is opened and creased into a diamond shape.

3. Complex folds are made to create the square base.

4. A bottom gluing unit applies adhesive to the flaps.

5. The final flaps are folded and pressed, creating a strong, flat, rectangular base that allows the bag to stand on its own.

This mechanical complexity is why these machines operate at a more moderate pace than their V-bottom counterparts.

Collection & Counting

Once the bottom is sealed, the finished bag is ejected onto a collection table. An automated stacking and counting system arranges the bags into neat, predetermined batches. This streamlines the final packing process and allows for easy quality control checks by the operator. High-end machines may include a rejection system that automatically removes any bags that fail sensor checks for glue or alignment.

Automation Standards

Modern production is driven by sophisticated control systems. A Programmable Logic Controller (PLC) serves as the machine's brain, orchestrating the timing and actions of every motor, sensor, and actuator. The operator interacts with the PLC through a Human-Machine Interface (HMI), which is typically a color touchscreen. From the HMI, the operator can set production parameters like bag length, speed, and glue application, as well as monitor real-time diagnostics and error alerts. This high level of automation reduces the need for constant manual adjustments, minimizes material waste, and ensures production consistency.

2. Square Bottom vs. V-Bottom (Sharp Bottom) Machines: Key Differences

When selecting a paper bag making machine, the most fundamental choice is between a square bottom and a V-bottom (or sharp bottom) design. While both produce paper bags, their structural differences lead to vastly different applications, performance characteristics, and investment levels. The choice depends entirely on the intended use of the final product.

Structural Integrity & Standability

The most obvious difference lies in the base. A square bottom bag has a flat, rectangular base that allows it to stand upright on its own. This feature is invaluable in retail and supermarket settings, where bags need to be easily filled by cashiers and present well on shelves or in shopping carts. V-bottom bags, conversely, have a simple, sealed fold at the base, forming a pointed or \"V\" shape. They cannot stand upright and are typically used for items that are stacked flat, such as pastries from a bakery, prescription medications, or small hardware items.

Production Speed Trade-offs

The mechanical simplicity of the V-bottom design allows for significantly higher production speeds. A typical V-bottom machine can produce anywhere from 150 to over 500 bags per minute. The square bottom paper bag machine involves a more complex bottom-forming process with multiple intricate folds and glue applications. This complexity limits its speed to a more moderate range, typically between 80 and 200 bags per minute, depending on the bag size and material thickness.

Load-Bearing Capacity

The reinforced, multi-layered construction of a square bottom provides superior strength and load-bearing capacity. This makes it the ideal choice for heavier items like groceries, flour, pet food, or luxury retail goods. The V-bottom bag's simple seam is not designed for significant weight and is best suited for lightweight, single-item packaging.

Material Compatibility

Square bottom machines are built to handle a wider range of paper weights, often measured in grams per square meter (GSM). They can process thicker, more durable kraft paper (e.g., 80-150 GSM) necessary for carrying heavy loads. V-bottom machines typically work with lighter paper (e.g., 30-80 GSM), as their primary function is simple containment rather than structural support. The robust frame and drive systems of a square bottom machine are essential for processing these heavier materials without excessive wear.

3. Critical Evaluation Criteria: Features That Drive ROI

Investing in a square bottom paper bag machine requires looking beyond the initial price tag. The features and technologies integrated into the equipment directly impact its long-term profitability, efficiency, and versatility. Focusing on these critical criteria will help you select a machine that delivers a strong return on investment (ROI).

Servo Motor Integration

Modern, high-performance machines use multiple servo motors instead of a single main motor with complex mechanical drives (gears, chains, and belts). Multi-servo systems offer significant advantages:

• Precision: Each servo motor controls a specific function (e.g., paper feeding, cutting, bottom forming), allowing for extremely precise and independent adjustments. This reduces errors and material waste.

• Energy Efficiency: Servo motors only consume significant power when performing an action, unlike a main motor that runs continuously. This can lead to substantial energy savings.

• Reduced Maintenance: With fewer mechanical parts, there is less wear and tear, reducing maintenance downtime and the cost of spare parts.

A machine with full servo integration is a hallmark of quality and a key driver of long-term operational efficiency.

Changeover Flexibility

The ability to produce different bag sizes is crucial for serving diverse market needs. \"Setup time\" or \"changeover time\" refers to how long it takes an operator to adjust the machine from one bag size to another. Machines with automated or semi-automated size change features are highly desirable. They use servo motors to reposition key components based on settings entered into the HMI, drastically reducing downtime compared to machines requiring extensive manual adjustments with wrenches and measuring tools.

Adhesive Systems

The choice of adhesive system impacts both operational costs and product compliance.

• Cold Glue (Water-Based): This is the most common and cost-effective option. It's ideal for standard kraft paper bags and is generally considered food-safe once cured. However, it has a longer setting time.

• Hot Melt Glue: This adhesive offers a much faster bond, which can be beneficial for high-speed production or for sealing coated or laminated papers. The equipment is more complex and the adhesive itself is more expensive, but its strong, instant tack can be essential for certain applications.

Some machines offer a dual system, using cold glue for the side seam and hot melt for the bottom to optimize both cost and performance.

Advanced Modular Add-ons

The true value of a modern paper bag making machine lies in its modularity. The ability to add inline units expands your product offerings and allows you to command higher prices. Key add-ons include:

• Handle Units: Inline modules can create and attach either flat paper handles or twisted rope-style handles, eliminating the need for a separate, labor-intensive application process.

• Window Die-Cutting: A die-cutting unit can create a window in the bag, which is then covered with a clear plastic film or a breathable mesh. This is popular for food products like bread or coffee beans, allowing customers to see the product.

• Thumb-Cut & D-Punch: These features add ergonomic convenience. A thumb-cut (a small semi-circular notch) makes the bag easier to open, while a D-punch creates a handle hole in smaller, handle-less bags.

4. Industry Applications: Matching Machine Output to Market Demand

The versatility of the square bottom paper bag makes it a preferred packaging solution across numerous industries. A machine's configuration—including its size range, material handling capabilities, and modular add-ons—should be directly aligned with the target market's specific demands.

Retail & Fashion

In the retail and fashion sectors, paper bags are a direct extension of the brand experience. These applications demand high-strength bags capable of carrying apparel, shoes, and other goods. Key features include:

• Handles: Twisted rope or flat handles are essential for customer convenience and a premium feel.

• High-Quality Printing: The ability to use pre-printed paper rolls with multi-color branding is critical.

• Durable Paper: Machines must handle heavier GSM kraft or coated paper to ensure the bag doesn't tear under load.

Food & Beverage

The food and beverage industry, especially the take-out and delivery segment, relies on the stability of square bottom bags. Wide gussets are crucial for creating a broad, stable base that can transport multiple food containers without tipping over.

• Grease Resistance: Machines may need to handle paper with a grease-resistant coating.

• Food-Grade Compliance: Both the paper and the adhesive system (typically cold glue) must meet food safety standards.

• Windowing: For bakeries and cafes, die-cut windows showcase fresh products like bread and pastries.

Industrial Packaging

For bulk goods, the square bottom design evolves into multi-wall paper sacks. These are used for packaging products like cement, grains, chemicals, and pet food.

• Multi-Wall Capability: The machine must be able to form bags from two or more layers of paper for maximum strength and puncture resistance.

• Valve Openings: Some industrial bags require a valve for automated filling, a feature that needs a specialized forming process.

• Heavy-Duty Construction: The machine itself must be robust enough to handle the immense weight and thickness of industrial-grade paper rolls.

E-commerce

The e-commerce market has unique requirements for secure and user-friendly packaging. Square bottom paper bags are adapted for this channel with specific features.

• Double-Adhesive Strips: A primary adhesive strip seals the package for shipping. A second, parallel strip is included for the customer to easily seal the bag for returns.

• Durability: Bags must withstand the rigors of the shipping and handling process, requiring strong paper and secure bottom sealing.

• Variable Sizes: The ability to quickly change between different bag sizes is beneficial for fulfillment centers handling a wide variety of products.

5. Implementation Realities: TCO, Maintenance, and Risks

Successfully integrating a square bottom paper bag machine into your operations involves looking beyond the initial purchase. A comprehensive understanding of the Total Cost of Ownership (TCO), operator requirements, and potential risks is essential for a smooth and profitable implementation.

Total Cost of Ownership (TCO)

The sticker price is only one part of the investment. A true TCO calculation includes several ongoing expenses:

• Energy Consumption: Servo-driven machines are more efficient, but heating elements for hot melt systems and pneumatic components still draw significant power.

• Consumables: The cost of cold glue or hot melt adhesive can be a major operational expense over time.

• -

Spare Parts:

• Availability and cost of common wear parts like cutters, grippers, and belts should be factored in. A reliable supplier with a good stock of spare parts is crucial to minimize downtime.

• Labor: While automated, the machine still requires a skilled operator for setup, monitoring, and quality control.

Operator Skill Requirements

Operating a high-precision machine is not a trivial task. The learning curve for managing the HMI, performing size changeovers, and troubleshooting common issues can be steep. Proper training from the manufacturer is non-negotiable. An operator needs to understand the delicate balance between paper tension, glue viscosity, and machine speed to consistently produce high-quality bags and minimize waste.

Common Operational Risks

Even the best machines can face operational challenges. Being prepared for them is key to maintaining productivity.

• Paper Waste: \"Web breaks,\" where the paper roll tears during operation, are a primary source of waste. They are often caused by poor roll quality or incorrect tension settings. Misaligned glue or improper folding during setup can also lead to a significant number of rejected bags.

• Glue Clogging: Both cold and hot melt glue systems can suffer from clogged nozzles, leading to poor sealing and production halts. Machines with automatic lubrication and purging/cleaning cycles are highly beneficial in mitigating this risk. Regular manual cleaning protocols are also essential.

Compliance & Safety

Industrial machinery must adhere to strict safety and quality standards. Ensure any potential machine meets internationally recognized standards like CE (for Europe) or ISO 9001. It must also comply with local industrial safety regulations, which often mandate features like emergency stop buttons, safety guards around moving parts, and clear warning labels. Non-compliance can lead to fines, operational shutdowns, and, most importantly, a risk to worker safety.

6. Shortlisting Logic: How to Choose the Right Manufacturer

Selecting the right manufacturing partner is just as important as choosing the right machine. A reliable manufacturer provides not only quality equipment but also the support and expertise needed to ensure your long-term success. Your shortlisting process should be a rigorous evaluation of their capabilities and track record.

Technical Support & After-Sales

When a machine is down, every minute counts. A manufacturer's after-sales support is a critical differentiator. Ask specific questions:

• What are their standard response times for service requests?

• Do they offer remote diagnostics, where a technician can log into the machine's PLC to identify problems?

• How quickly can they dispatch an on-site technician if needed?

• What is their warranty policy, and what does it cover?

A vendor who invests in a robust support infrastructure demonstrates a commitment to their customers' operational continuity.

Customization Capabilities

Your business may have unique needs based on your market or materials. A good manufacturer should be a partner in finding solutions. Can they adapt the machine to run specific types of paper you plan to use, such as recycled content, coated stock, or lightweight kraft? Discuss your specific product goals with them. Their willingness and ability to engineer custom solutions or modifications is a strong indicator of their technical expertise and flexibility.

Proven Track Record

Never be the first to test a new machine or a new manufacturer. A proven track record provides invaluable peace of mind.

• Request References: Ask for a list of existing clients, preferably in your industry or region. Speaking with them can provide candid insights into the machine's performance and the manufacturer's support.

• Demand a Factory Acceptance Test (FAT): Before the machine is shipped, you or a representative should visit the manufacturer's facility for a FAT. During this test, the machine should be run using your specific paper and producing your target bag sizes. It is your opportunity to verify that it meets all agreed-upon performance specifications.

• Review Case Studies: Look for evidence of successful installations and long-term partnerships. A manufacturer proud of their work will have this information readily available.

Conclusion

Investing in a square bottom paper bag machine is a strategic decision that aligns your business with the growing demand for sustainable, functional, and premium packaging. While the initial capital outlay is higher than for simpler machines, the output commands a higher market price and meets the rigorous standards of modern retail, food service, and e-commerce. The superior structural integrity, load-bearing capacity, and branding potential of square bottom bags deliver tangible value to both you and your customers.

These machines are not just production assets; they are a way to future-proof your business. As the world moves further into a circular economy, efficient and versatile paper packaging solutions will become even more critical. To make the right choice, begin with a clear, detailed definition of your requirements. Know your target bag dimensions, desired production volume, and material specifications before you engage with suppliers. This foundational work will empower you to ask the right questions and select a machine that serves as a profitable cornerstone of your operations for years to come.

FAQ

Q: What is the average production speed of a square bottom paper bag machine?

A: The average production speed typically ranges from 80 to 200 bags per minute. The exact speed depends on several factors, including the size of the bag, the thickness (GSM) of the paper, and whether additional inline processes like handle attachment or window cutting are being performed.

Q: Can one machine make multiple bag sizes?

A: Yes, one of the key features of these machines is their flexibility. They are designed with an adjustable range for bag length, width, and bottom size. Switching between sizes, known as a \"changeover,\" requires adjusting the settings and sometimes changing out forming molds. Modern machines with servo motors can automate much of this process to reduce downtime.

Q: What type of paper is best for square bottom bags?

A: Kraft paper is the most common and ideal choice due to its high strength and durability. It can be used in its natural brown color, bleached white, or coated for printing. Paper weight is crucial, with typical ranges from 60 to 150 GSM (grams per square meter) to ensure the bag has sufficient strength for its intended use. Recycled paper is also a popular, sustainable option.

Q: Is it possible to add handles later?

A: While handles can be added manually as a separate process, it is highly inefficient and labor-intensive. For mass production, it is far more effective to use a fully integrated line where a handle-making unit is attached directly to the paper bag machine. This creates and applies the handles inline, resulting in a finished product in one continuous process.

Q: What is the typical lifespan of this equipment?

A: With proper and regular maintenance, a well-built square bottom paper bag machine can have a lifespan of 15-20 years or even longer. The durability heavily depends on the quality of its construction, especially the frame and components. Machines driven by servo motors tend to have a longer life with lower maintenance costs compared to older, purely mechanical systems due to reduced wear on parts.
